小型臭氧設備
日期：2018/5/3 / 人氣： / 來源：派尼爾環保

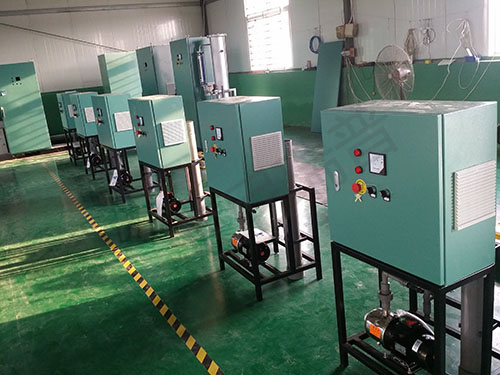

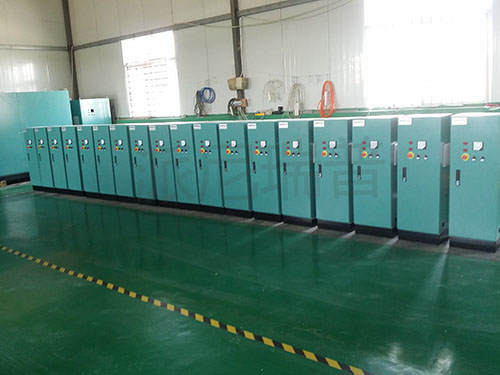

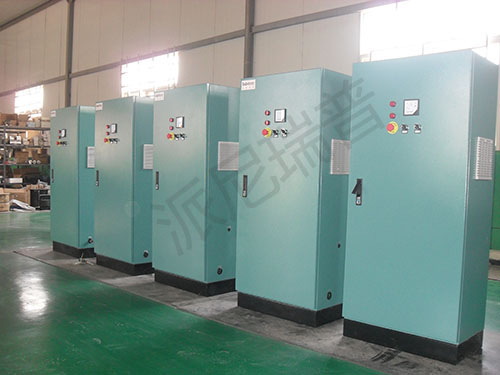

圖片展示
PRODUCT SHOW
中小型空氣源技術參數
Air-Source Medium Ozone Generator Technology Parameter
| 產品型號 |
臭氧產量 Ozone capacity |
原料氣流量 Feed gas flow |
臭氧濃度 Ozone concentration |
冷卻水流量 Cooling water flow |
功耗 Power consumption |
產品尺寸 dimension mm |
||
| g/h | Nm3/h | g/ m3 | m3/h | Kw | 寬W | 深D | 高H | |
| POZN-10 | 10 | 0.35-0.5 | 20-30 | 0.02-0.03 | 0.16-0.18 | 500 | 400 | 1300 |
| POZN-20 | 20 | 0.7-1.0 | 20-30 | 0.04-0.06 | 0.32-0.36 | 600 | 600 | 1600 |
| POZN-30 | 30 | 1.1-1.5 | 20-30 | 0.06-0.09 | 0.50-0.55 | 600 | 600 | 1600 |
| POZN-50 | 50 | 1.7-2.5 | 20-30 | 0.1-0.15 | 0.80-0.90 | 800 | 600 | 1600 |
| POZN-80 | 80 | 2.8-4.0 | 20-30 | 0.16-0.25 | 1.28-1.50 | 1000 | 800 | 1700 |
| POZN-100 | 100 | 3.5-5 | 20-30 | 0.3-0.4 | 1.6-1.8 | 1000 | 800 | 1700 |
| POZN-200 | 200 | 7-10 | 20-30 | 0.6-0.8 | 3.2-3.6 | 1200 | 800 | 1700 |
| POZN-300 | 300 | 10.5-15 | 20-30 | 0.9-1.2 | 4.8-5.4 | 1200 | 800 | 1700 |
| POZN-400 | 400 | 14-20 | 20-30 | 1.2-1.6 | 6.4-7.2 | 1400 | 800 | 1700 |
| POZN-500 | 500 | 17.5-25 | 20-30 | 1.5-2.0 | 8-9 | 1400 | 800 | 1700 |
| POZN-600 | 600 | 21-30 | 20-30 | 1.8-2.4 | 9.6-1.08 | 1400 | 800 | 1700 |
| POZN-800 | 800 | 28-40 | 20-30 | 2.4-3.2 | 12.8-14.4 | 1800 | 800 | 1800 |
中小型氧氣源技術參數
Oxygen-Source Medium Ozone Generator Technology Parameter
| 產品型號 |
臭氧產量 Ozone capacity |
原料氣流量 Feed gas flow |
臭氧濃度 Ozone concentration |
冷卻水流量 Cooling water flow |
功耗 Power consumption |
產品尺寸 dimension mm |
||
| g/h | Nm3/h | g/ m3 | m3/h | Kw | 寬W | 深D | 高H | |
| POZN-10 | 10 | 0.09-0.15 | 80-120 | 0.02-0.03 | 0.08-0.10 | 300 | 250 | 500 |
| POZN-20 | 20 | 0.18-0.26 | 80-120 | 0.04-0.06 | 0.16-0.20 | 500 | 300 | 1000 |
| POZN-30 | 30 | 0.27-0.40 | 80-120 | 0.06-0.09 | 0.24-0.30 | 500 | 300 | 1000 |
| POZN-50 | 50 | 0.45-0.65 | 80-120 | 0.1-0.15 | 0.40-0.50 | 500 | 300 | 1200 |
| POZN-80 | 80 | 0.75-1.1 | 80-120 | 0.16-0.25 | 0.64-0.80 | 800 | 600 | 1600 |
| POZN-100 | 100 | 0.9-1.5 | 80-120 | 0.2-0.3 | 0.8-1.0 | 800 | 600 | 1600 |
| POZN-200 | 200 | 1.8-2.6 | 80-120 | 0.4-0.6 | 1.6-2.0 | 1000 | 800 | 1700 |
| POZN-300 | 300 | 2.7-4.0 | 80-120 | 0.6-0.9 | 2.4-3.0 | 1000 | 800 | 1700 |
| POZN-400 | 400 | 3.6-5.2 | 80-120 | 0.8-1.2 | 3.2-4.0 | 1200 | 800 | 1700 |
| POZN-500 | 500 | 4.5-6.5 | 80-120 | 1.0-1.5 | 4.0-5.0 | 1200 | 800 | 1700 |
| POZN-600 | 600 | 5.4-7.8 | 80-120 | 1.2-1.8 | 4.8-6.0 | 1200 | 800 | 1700 |
| POZN-800 | 800 | 7.2-10.5 | 80-120 | 1.6-2.4 | 6.4-8.0 | 1400 | 800 | 1700 |
